M266 Automated monochormator-spectrograph

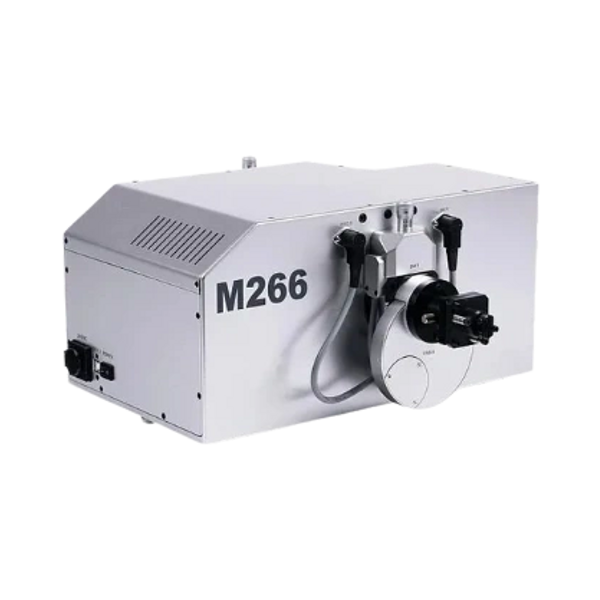

Monochromator M266

The M266 is a high-aperture, general-purpose monochromator offering outstanding line quality and minimal stray light, making it suitable for a broad range of spectroscopic applications. With a focal length of 284 mm and a 30×10 mm flat field, it delivers precise spectral performance.

Its fast optical system (F/3.8), low stray light, and excellent imaging quality ensure reliable results in demanding analytical tasks. The instrument features two output ports, allowing flexible configuration—such as two exit slits, an exit slit and a detector, or dual detectors for simultaneous use.

The M266i imaging version includes astigmatism compensation for both output ports, enabling effective use with matrix detectors in multi-channel spectroscopy applications. It supports both binning and full 2D imaging modes.

The M266 is fully automated. Wavelength scanning, grating and filter changes, slit width adjustments, and output port selection are all controlled via intuitive software. An integrated automatic shutter enables dark-current subtraction and protects detectors from overexposure.

The Wavelight software suite offers full instrument control and detector integration. It supports panoramic spectral stitching by combining scans from multiple diffraction gratings and includes extensive tools for spectral processing and analysis.

SDKs and DLLs are available for integration with custom software environments or LabVIEW control.

The M266 monochromator-spectrograph supports a wide range of accessories designed for efficient light collection from samples at both finite distances and infinity. These components ensure optimal light delivery to the monochromator, whether using free-space coupling or optical fibers, and provide effective aperture matching.

Available accessories include:

Order separating filter wheels
Aperture matching adapters
Condensers for fiber coupling
Condensers for direct monochromator input
Crossed entrance slit (optional alternative to standard slit)
Optical fibers
CCD detector adapters
CCD detectors
Cassegrain lenses

Emission, Fluorescence, and Raman Spectroscopy
Multi-Channel Spectroscopy
Absorption, Reflection, and Transmission Measurements
High-Resolution Analytical Applications from UV to IR
