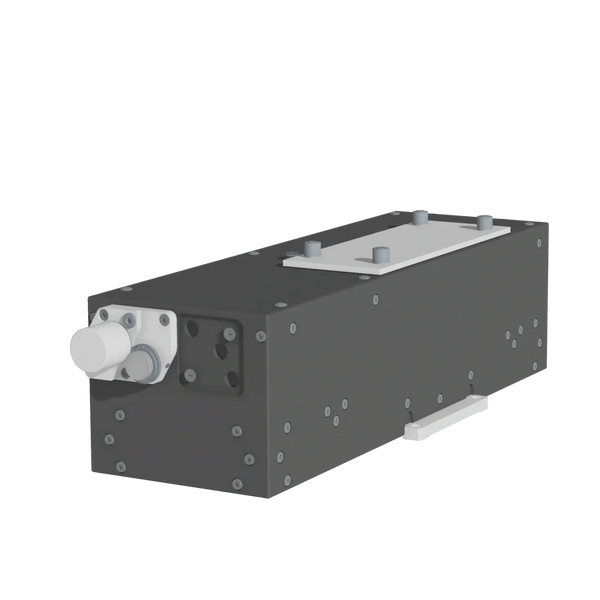

WN200 Compact Nd:YAG Laser with Superior Beam Quality

The WN200 offers outstanding beam quality and enhanced reliability within a straightforward, compact design. Users have quickly recognized its value—over 200 of these lasers are in daily operation across industrial and scientific fields.


  • Laser pulse energy of 180 mJ
  • Pulse repetition rate up to 20 Hz
  • Homogeneous flat-top beam profile
  • Built-in VIS and UV harmonic generators
  • Compact and rugged design

Description

The industrial-grade design of the WN200 allows you to focus fully on your work—without worrying about unexpected downtime or service delays. Purpose-built for demanding industrial environments, this laser is ideal for long-term, reliable operation without failure.

You can trust the precision of your experiments, thanks to the laser’s outstanding beam quality and long-term output stability—achieved through a uniquely engineered optical cavity and precise thermal stabilization of all critical components.

Everyday operation is made simple and efficient with features like built-in harmonic generators, PC-based control of laser parameters, easy flashlamp replacement, closed-loop water-to-air cooling, operation from a standard wall outlet, and a compact footprint.

Routine maintenance costs are minimized with a flashlamp lifespan exceeding 60 million pulses—significantly extending service intervals and reducing the overall cost of ownership for this high-performance device.

Options & Accessories

HARMONIC GENERATORS
The WN200 laser comes standard with built-in SHG, THG, and FHG. Upon request, these harmonic generators can also be supplied as separate, stand-alone modules. FiHG is available exclusively as an external unit.

OPO
The WN200 can be optionally equipped with an optical parametric oscillator from the LP600 series. This configuration provides a source of continuously tunable laser radiation covering a broad spectral range—from UV to IR.

ATTENUATOR
The laser can be enhanced with a PC-controlled attenuator. Depending on your needs, it can be supplied either as a unit optimized for a single wavelength or as an achromatic attenuator capable of simultaneously attenuating all laser harmonics from 266 nm to 1064 nm.

Applications

  • Ti:Sapphire and OPO Pumping
  • Dye Laser Pumping
  • Spectroscopy
  • LIDAR (Light Detection and Ranging)
  • LIF (Laser-Induced Fluorescence)
  • LIBS (Laser-Induced Breakdown Spectroscopy
  • Educational Applications
  • PIV (Particle Image Velocimetry)
  • Range Finding
  • Ablation
  • Laser Marking
  • TFT-LCD Repair
  • Flat Panel Display (FPD) Manufacturing

Specifications
